Description

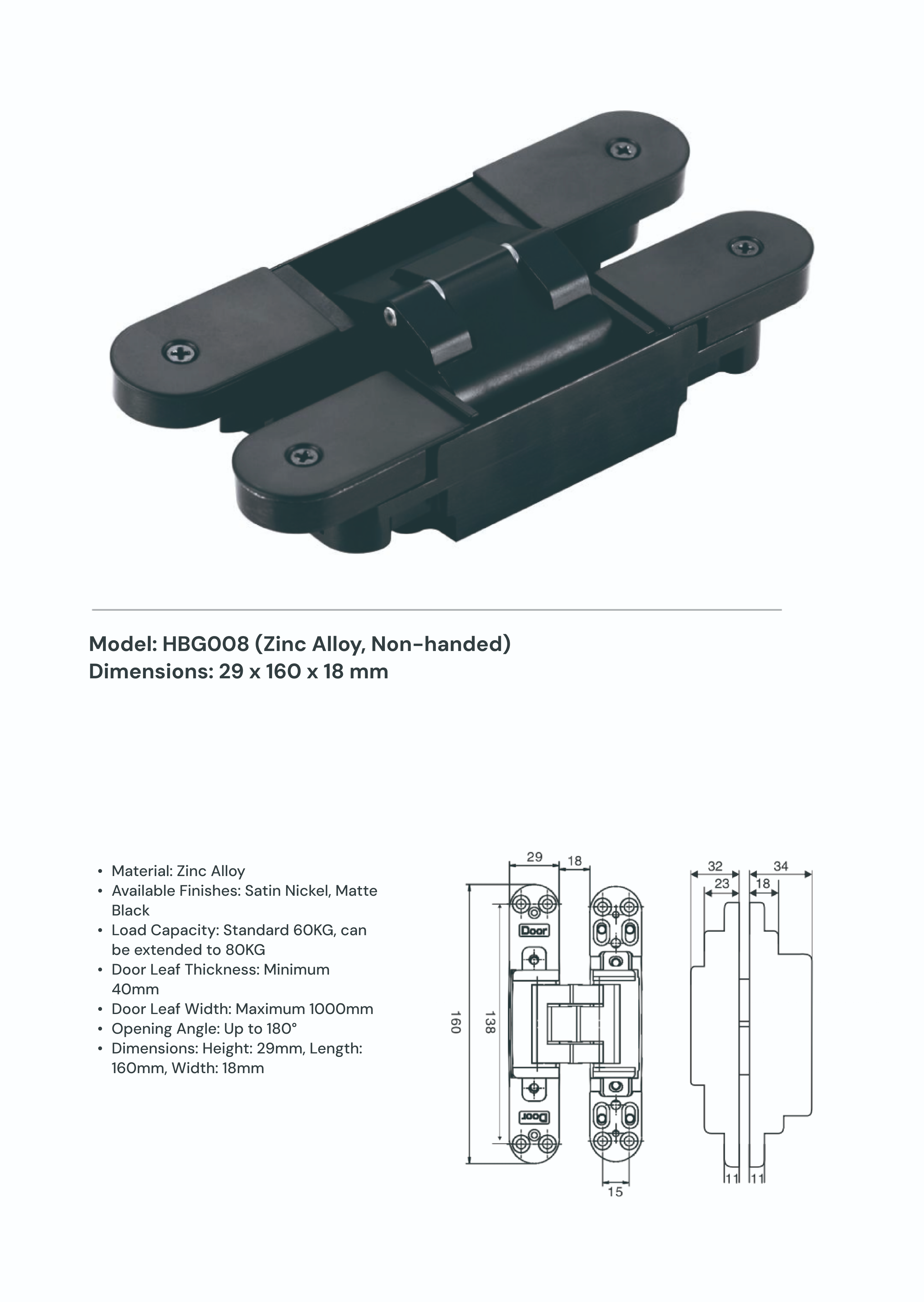

The HBG-008 3D Adjustable Concealed Hinge, crafted from robust zinc alloy, is designed for precision and durability. Available in two sleek finishes, Satin Nickel and Matte Black, this hinge seamlessly blends into a variety of decor styles while offering functionality and enhanced durability. It supports a maximum door weight of 60KG and up to 80KG with extensions, making it suitable for both residential and commercial applications. The hinge allows for three-dimensional adjustment with up to ±3mm horizontal and vertical movement and ±1mm depth adjustment to ensure perfect door alignment. With a maximum opening angle of 180°, it offers flexibility in door operations.
- Material: Zinc Alloy
- Available Finishes: Satin Nickel, Matte Black
- Load Capacity: Standard 60KG, can be extended to 80KG
- Door Leaf Thickness: Minimum 40mm
- Door Leaf Width: Maximum 1000mm
- Opening Angle: Up to 180°
- Dimensions: Height: 29mm, Length: 160mm, Width: 18mm
